    Spine

    DYNA-MESS test systems can be used to perform standardised tests in the spinal column area. Examples of test objects are fixators, screws, plates, rods and spinal body replacement elements.

    We are DYNA-MESS. Test Systems.

    Tests

    ASTM F 1717-96

    Testing of a fully assembled spinal implant via two UHMWPE vertebral replacement bodies

    ASTM F 1798-97

    Testing of partial components of a spinal implant (fixation screws,…)

    ASTM F 2077-01

    Testing of intervertebral bodies

    Table top testing machines
    Vertical testing machines

    Testing of metallic bone screws

    The DYNA-MBS testing machine developed by DYNA-MESS can be used to carry out various tests on metallic bone screws in accordance with the ASTM F543 standard.

    • Static torsion test
    • Determination of the screw-in torque
    • Extraction attempt
    • Determination of the self-tapping properties of self-tapping bone screws
    DYNA-MBS

    SUITABLE PRODUCTS

    Lifting equipment

    Horizontal testing machines
    Vertical testing machines
    Mobile testing machines
    Testing machine for slings

    Our expertise in lifting equipment

    For more than 35 years, the name “DYNA-MESS” has stood for expertise in the field of testing ropes, belts, chains and slings.

    Horizontal testing machines

    Horizontal testing machines from DYNA-MESS offer flexible testing options for various applications. They enable efficient testing and offer a versatile solution for different horizontal testing requirements in rope and lifting technology and other industries.

    Horizontal testing machines

    Vertical testing machines

    DYNA-MESS offers testing machines in classic vertical design in a wide variety of construction variants. The extremely stable and extremely low-deformation test frames are available in 2-column and also 4-column versions with top or bottom-mounted cylinders.

    Vertical testing machines

    Mobile testing machines

    Mobile testing machines for chains, load handling attachments and slings enable annual testing directly on site. DYNA-MESS offers optimised machines for this purpose, which are mounted in vans and ensure efficient, time-saving and safe testing.

    Mobile testing machines

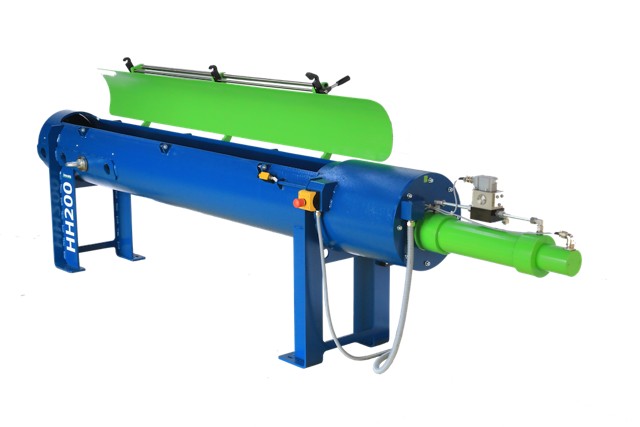

    Testing machine for slings
