    Manhole covers for vehicular and pedestrian areas

    Manhole covers
    Technical properties

    Manhole covers for vehicular and pedestrian areas

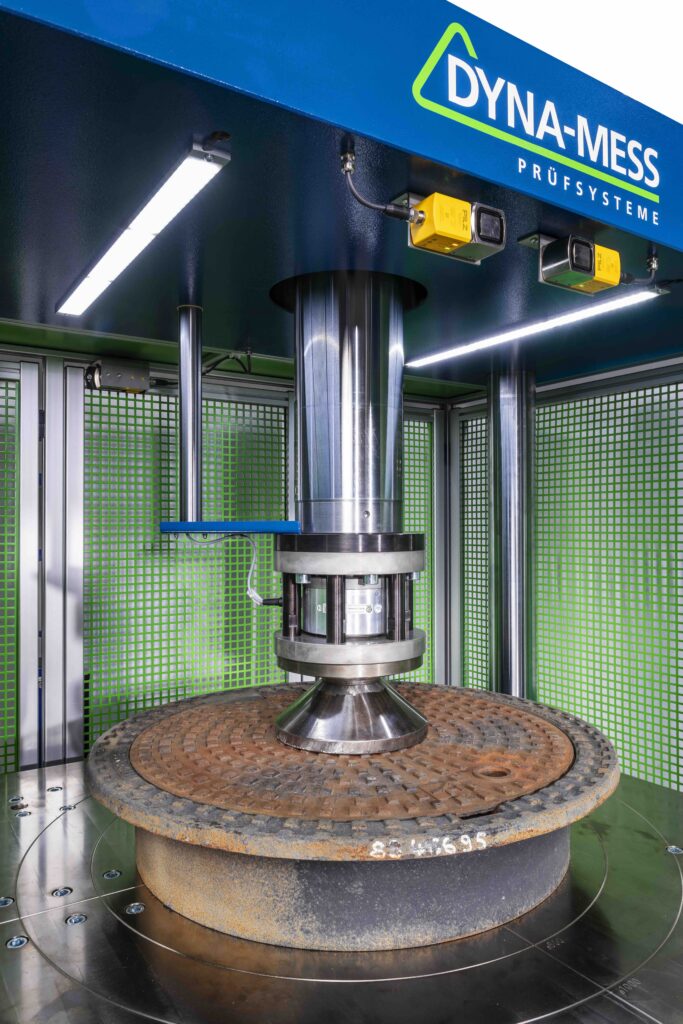

    DYNA-MESS testing machine for compression tests on tops and manhole covers for vehicular and pedestrian areas in accordance with EN 124-1.

    We are DYNA-MESS. Test Systems.

    Technical properties

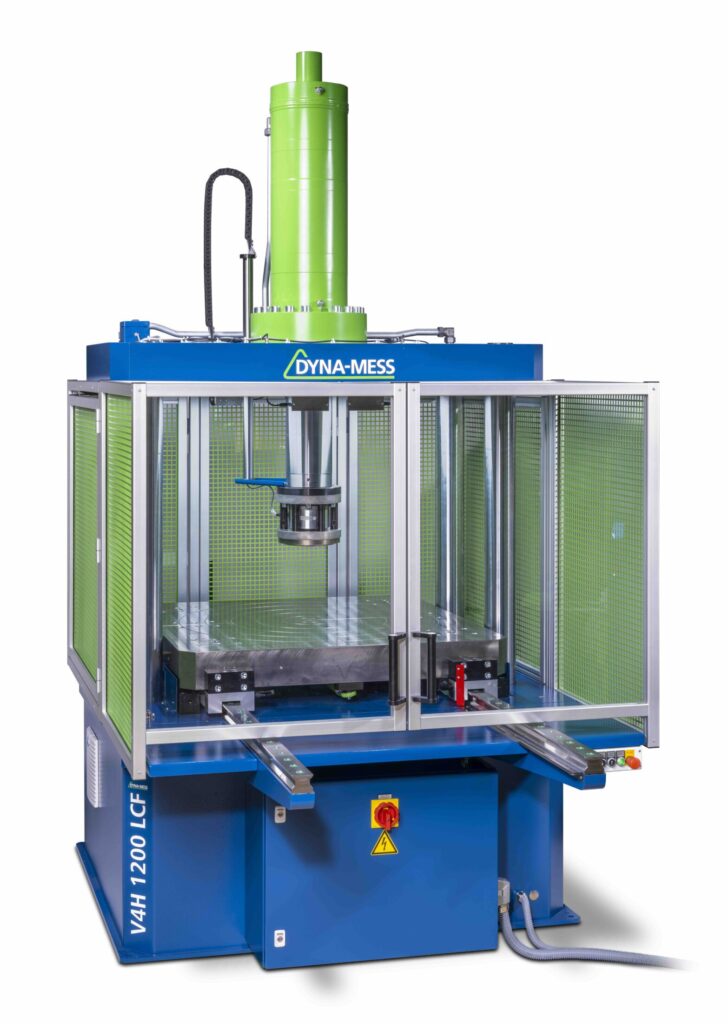

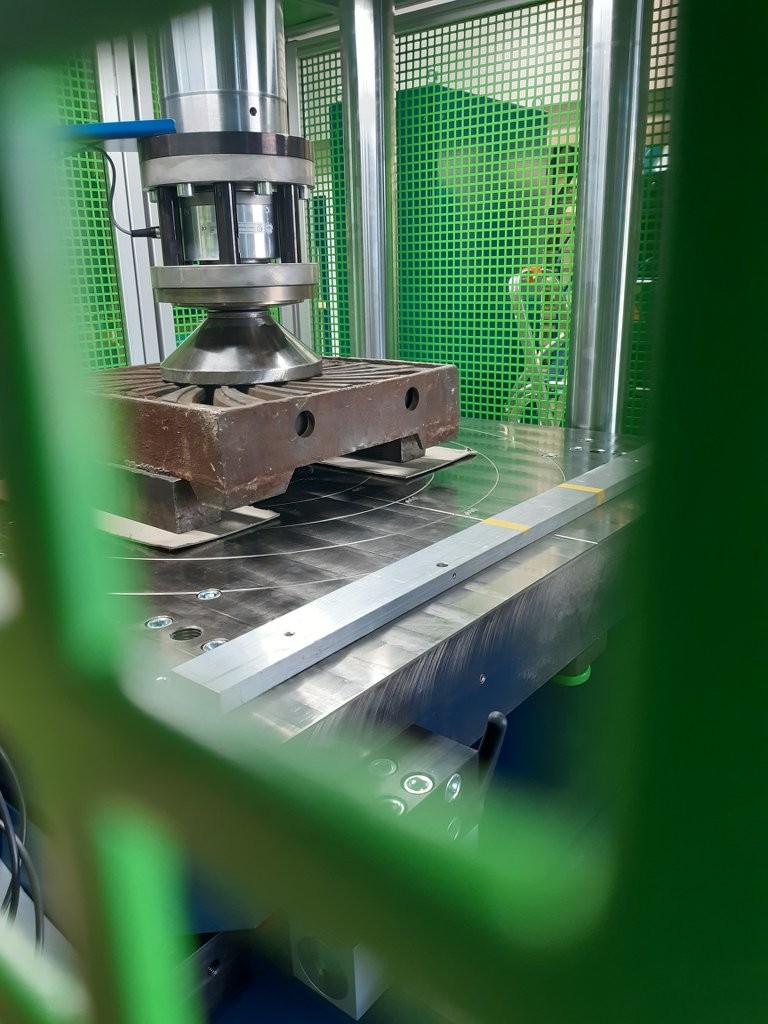

    The gully top testing machine is a customised design for compression tests on various components, such as gully tops, covers, drainage channels, surface boxes, caps, and much more. The machine has a 4-column design with an overhead cylinder and a hydraulic unit integrated in the base. The test specimen are brought into the test chamber via an automatically operated sliding table with scale graduation to determine the table position. This allows for the simulation of eccentric loads.

    Accessories, such as different test stamps and additional displacement sensors, allow the various tests to be carried out in accordance with the standard.

    Tests according to EN 124-1

    EN 124-1/A: Permanent deformation

    • Manual measurement and input of the zero value
    • Verification of the correct insertion depth of the feed table
    • Loading/unloading according to load classes with defined force increase speed
    • Manual measurement and input of the final value
    • Calculation of the permanent deformation

    EN 124-1/B: Load capacity

    • Verification of the correct insertion depth of the feed table
    • Loading/unloading according to load classes with defined force increase speed
    • Holding the test force
    • Manual input of a status description

    EN 124-1/D: Tilting behaviour

    • Automatic loading/unloading to defined force with defined force increase speed
    • Automatic measurement of the tilt height

    Always included: state-of-the-art software and electronics

    Software DYNA-TCC
    Electronics DYNA-CLC
